Plug & Play Pickup System



It takes hours to install a pickup on a conventional guitar, but less than 5 seconds with the Plug & Play Pickup system.



To change pickup modules without taking the guitar off your shoulder, or turning the volume down:

1:press the sides of the module from top of the guitar.

2: Pull the module out from the back of the guitar.

3: Insert the new module from the back until it snaps into place.



The KAM Plug & Play Pickup (R) system is compatible with the vast majority of pickups. Standard distance between the mounting holes and overall pickup width of l.5 inch or less are the only compatibility requirements.



Single Coil, Hum-Bucker, Passive or Active pickups can be used. In case of active pickups, the battery is placed in the pickup module. The plugs are wired in such a way to allow coil tapping for hum-bucker pickups which include the "tap" wiring.

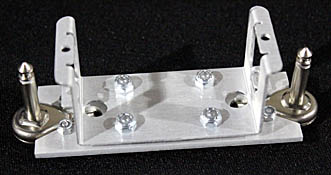

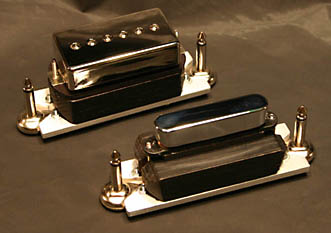

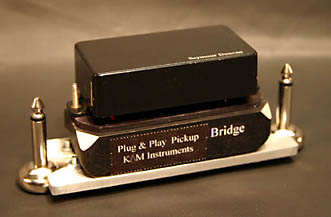

KAM Plug & Play Module

(Can be equipped with battery holder.)

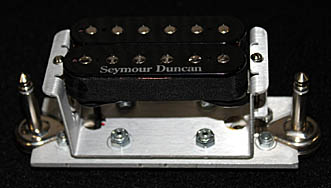

We have a relationship with Seymour Duncan and offer their pickups on our Plug & Play modules as fully assembled units.

(Multi-function switch on guitar acts as "Coil Tap" on hum-bucker pickups.)

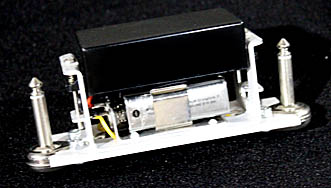

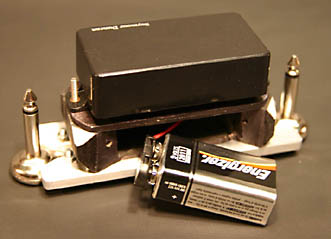

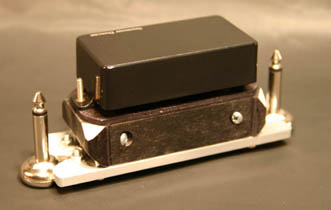

Active pickup on Plug & Play module. (Multi-function switch on guitar activates the battery.)

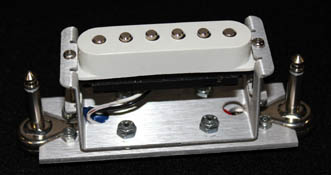

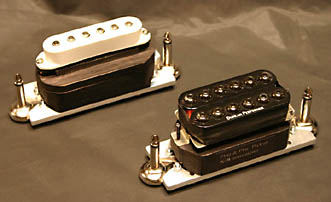

Single Coil Pickup on Plug & Play Module

(Multi-function switch on guitar acts as "kill Switch".)

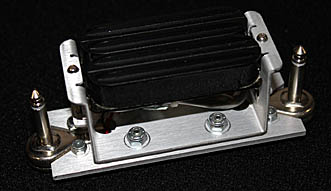

Quad Rails Pickup on Plug & Play  Module.

(Multi-function switch on guitar acts as "Coil Tap".)

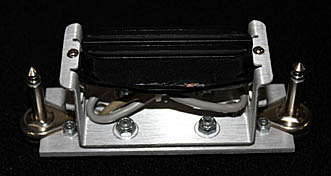

Hot Rails Type Pickup on Plug & Play Module

(Multi-function switch on guitar acts as "Coil Tap")



To change pickup modules without taking the guitar off your shoulder:

1:Press the sides of the module from top of the guitar.

2: Pull the module out from the back of the guitar.

3: Insert the new module from the back wile holding it parallel to the guitar body, until it snaps into place.

Always press the module in with two fingers placed on, or close to, the plugs for a smoother insertion.

It is not necessary to turn the guitar volume down.

Pricing:

Assembled Modules: $59 + Pickup Cost, or with our supplied pickup)

Module kit - Passive: (unassembled, without battery holder): $49

Module Kit -Active: (Partially assembled, with battery holder): $55

KAM Active pickups: $59

KAM Passive pickups: $49

Orders:

To receive a price for a Plug&Play module with a particular pickup, please email us using: info@KAMinstruments.com



Plug & Play Pickup is a registered trade mark of KAM Instruments Corporation. US patent applied for.
